| Part Number | ESANLE31-K40C | Distance | 40km |
| Form Factor | QSFP+ | Connector | LC duplex |
| Wavelength | 1310nm | Transmitter | EML |
| Receiver | APD | Media | Single-Mode Fiber(SMF) |
| Power Consumption | <3.5W | Protocol | 40G Base Ethernet |
| Case Temperature(℃) | C: 0℃ to +70℃ / I: -40℃ to +85℃ |
Product Features
Hot-pluggable QSFP+ form factor
Supports 41.3 Gb/s aggregate bit rate
Power dissipation <3.5W
18.5dB link insertion loss budget
RoHS-6 compliant
Single 3.3V power supply
Maximum link length of 40km om Single Mode Fiber(SMF)
Uncooled 4x10 Db/s CWDM transmitter XLPPI electrical interface
Duplex LC receptacles
Built-in digitial diagnostic functions, including Tx/Rx power
Product Highlights

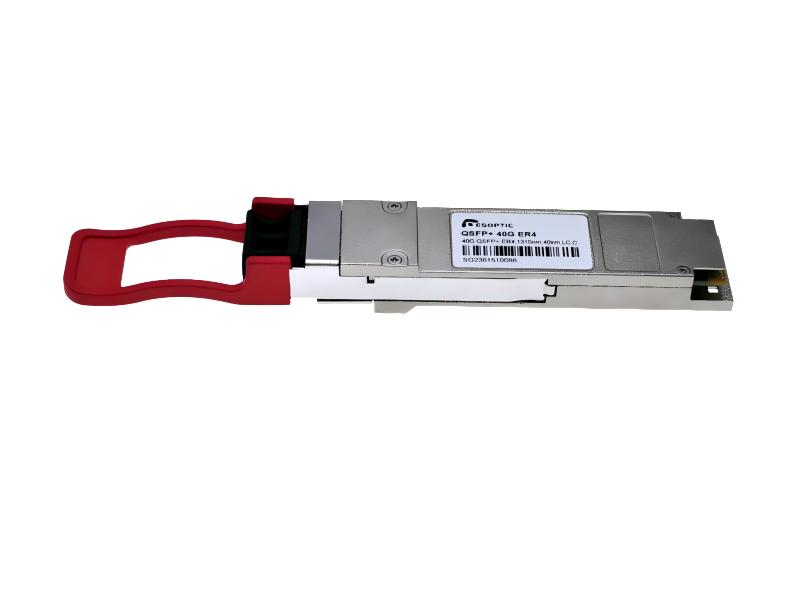

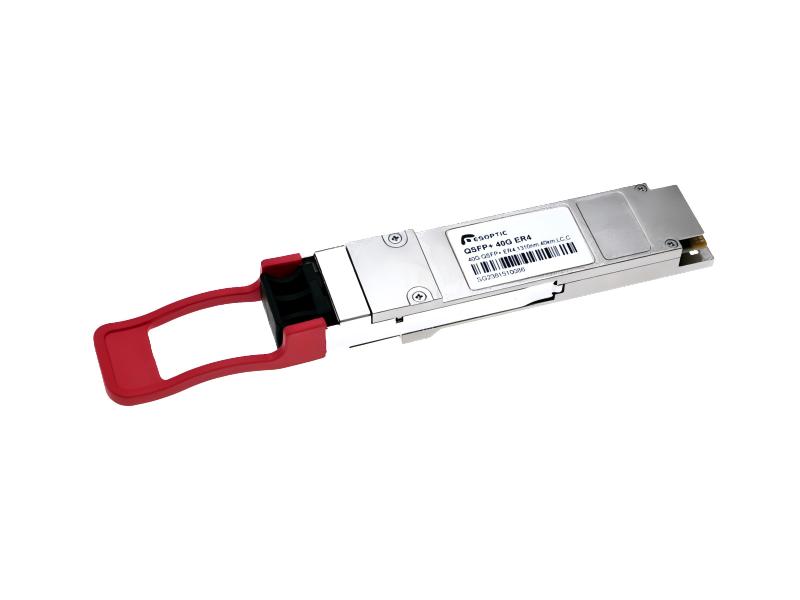

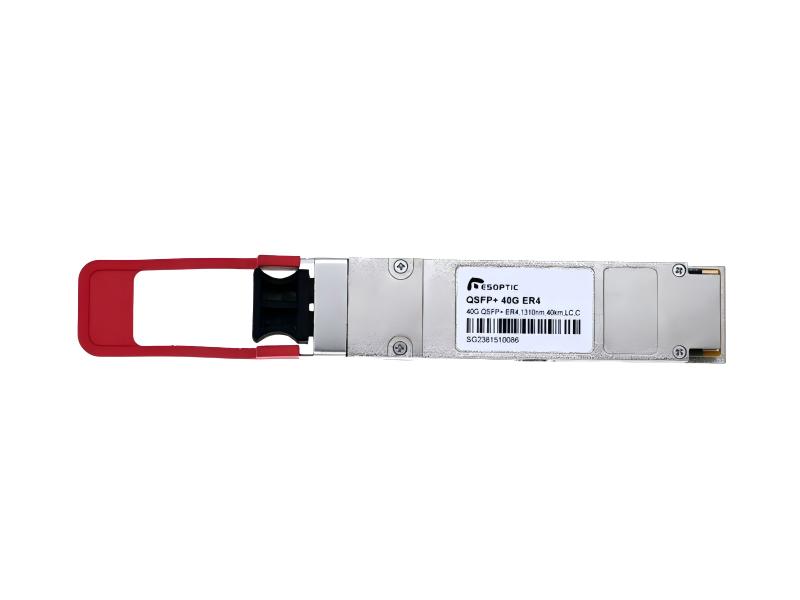

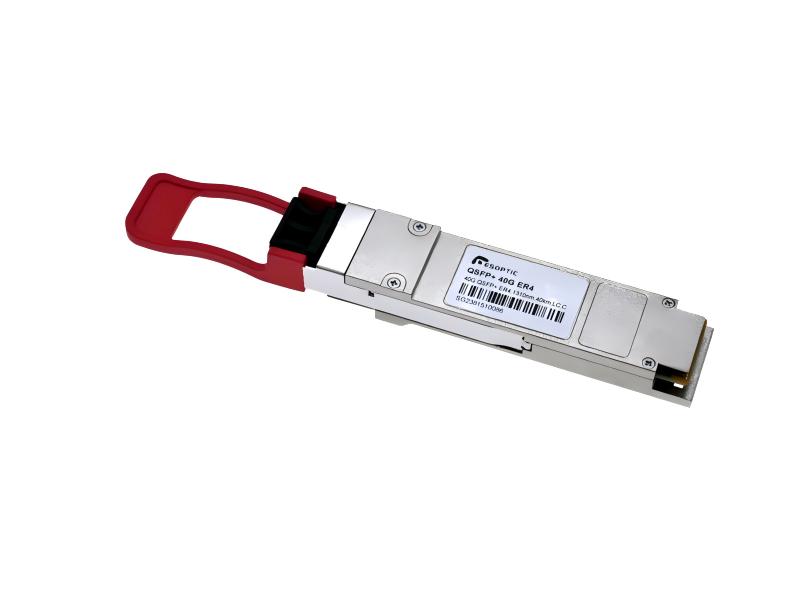

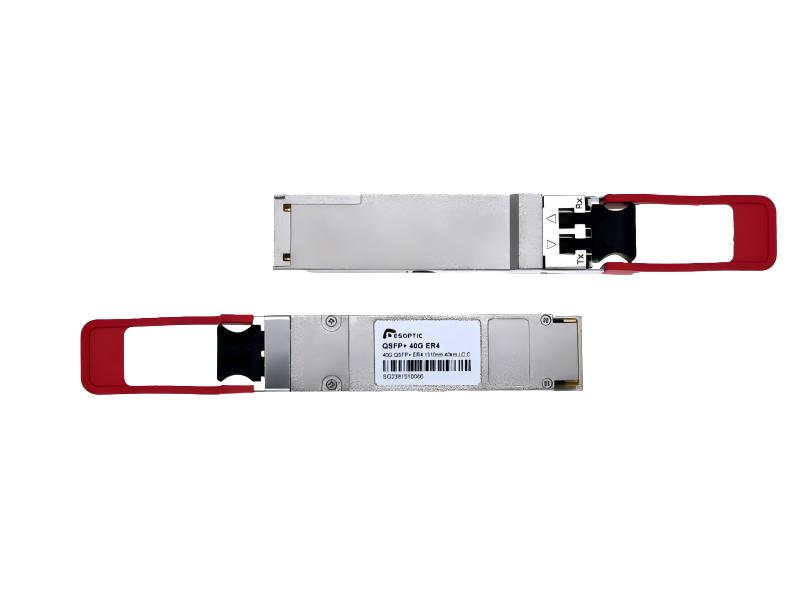

The 40G QSFP+ ER4 1310nm 40km Transceiver is a high-performance optical module designed for long-range data transmission in telecom and data center networks. Supporting QSFP 40G ER4 and QSFP+ 40G standards, this module delivers reliable and high-speed data transfer over single-mode fiber (SMF) for distances up to 40 kilometers. With its 1310nm wavelength, the 40G transceiver ensures optimal performance with low signal loss and minimal latency, making it an ideal solution for long-distance 40G connectivity in high-demand environments. Whether used for backbone connections or inter-data center links, this QSFP ER4 40G module offers the scalability, reliability, and efficiency needed for next-generation network infrastructures.
Telecom Backbone Networks
The 40G QSFP+ ER4 module is an essential component of telecom backbone networks, enabling high-capacity, long-distance data transmission between core network nodes. It supports high-speed communication over optical fiber networks, facilitating the delivery of voice, video, and data services with low latency and high reliability.
Enterprise Connectivity Enterprise Connectivity
The 40G QSFP+ ER4 1310nm module is ideal for enterprises requiring long-distance connectivity between offices, campuses, or branch locations. It supports high-speed, low-latency data transfer for critical business applications, including real-time communication, cloud-based collaboration tools, and centralized data access.

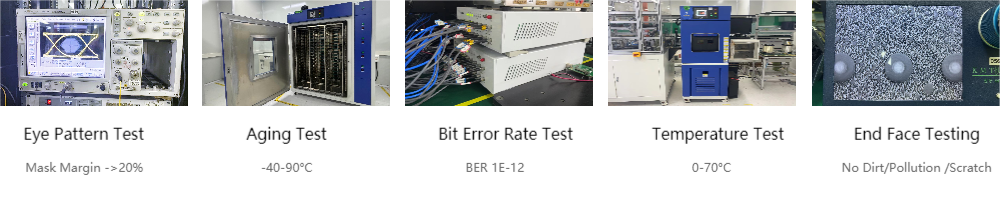

Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.

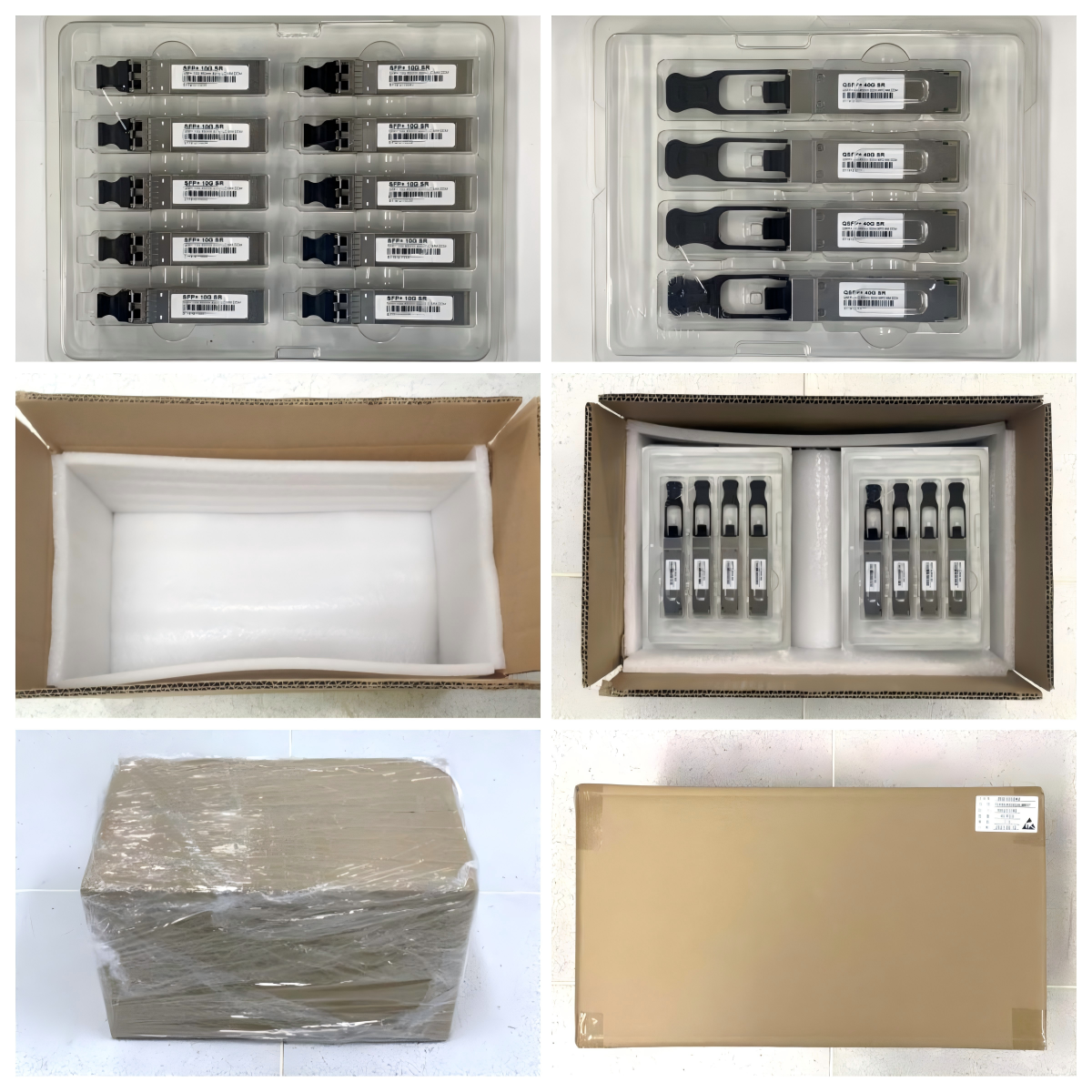

Product packaging specification
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
